Overview

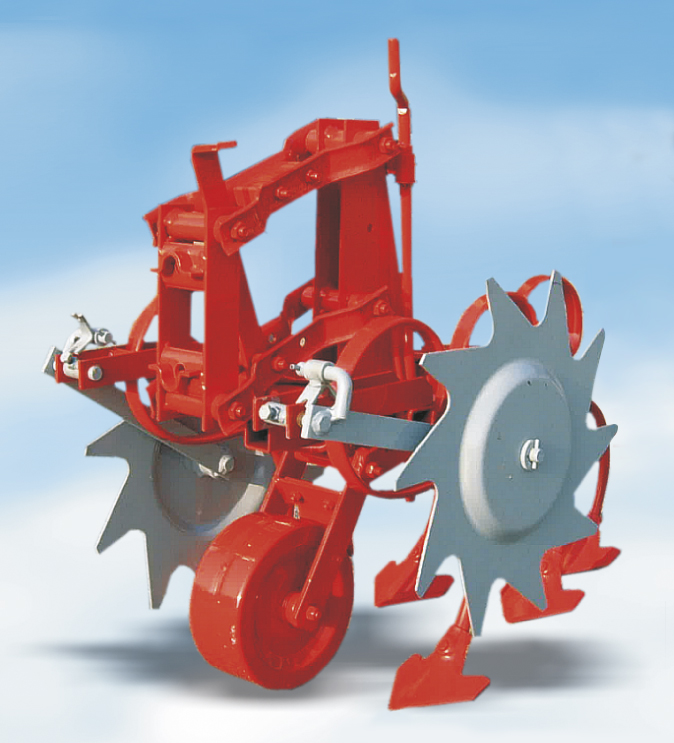

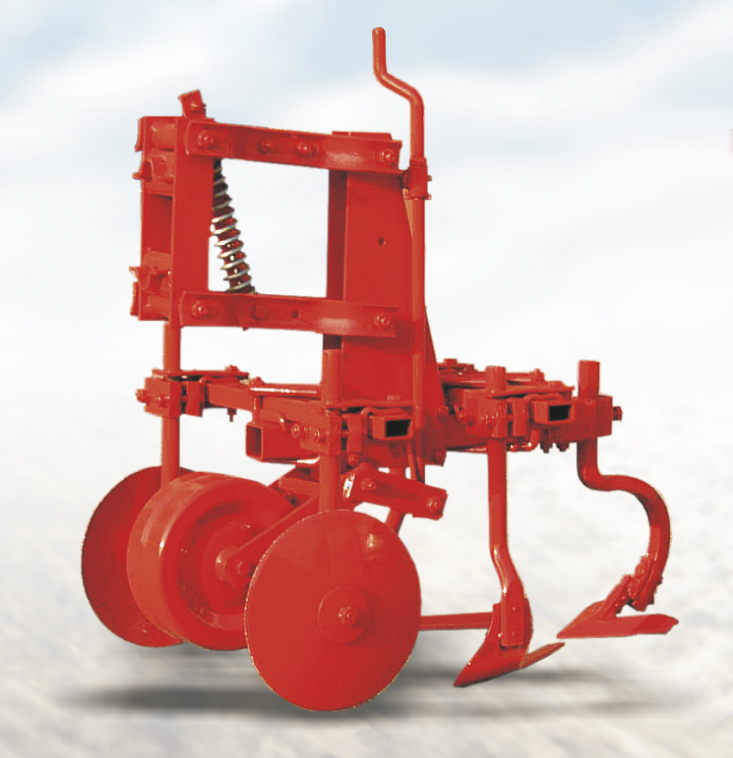

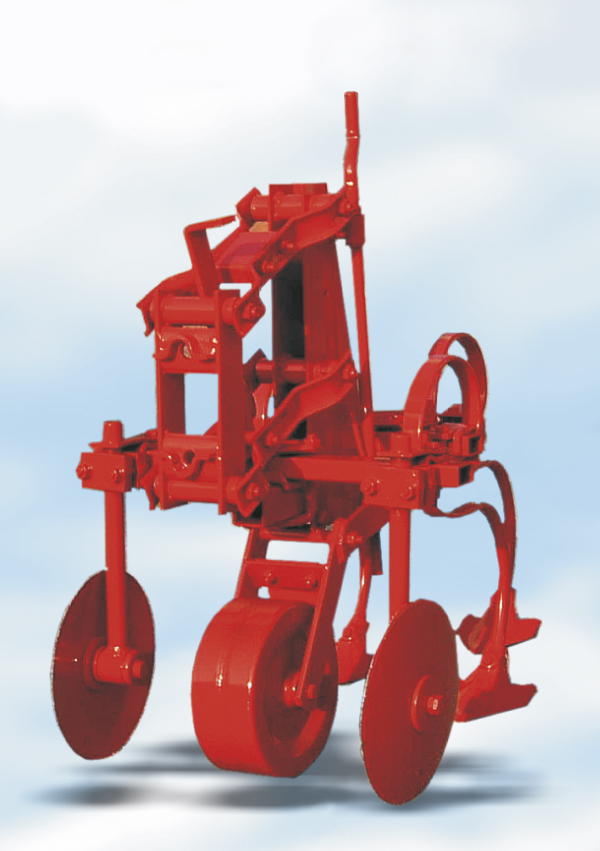

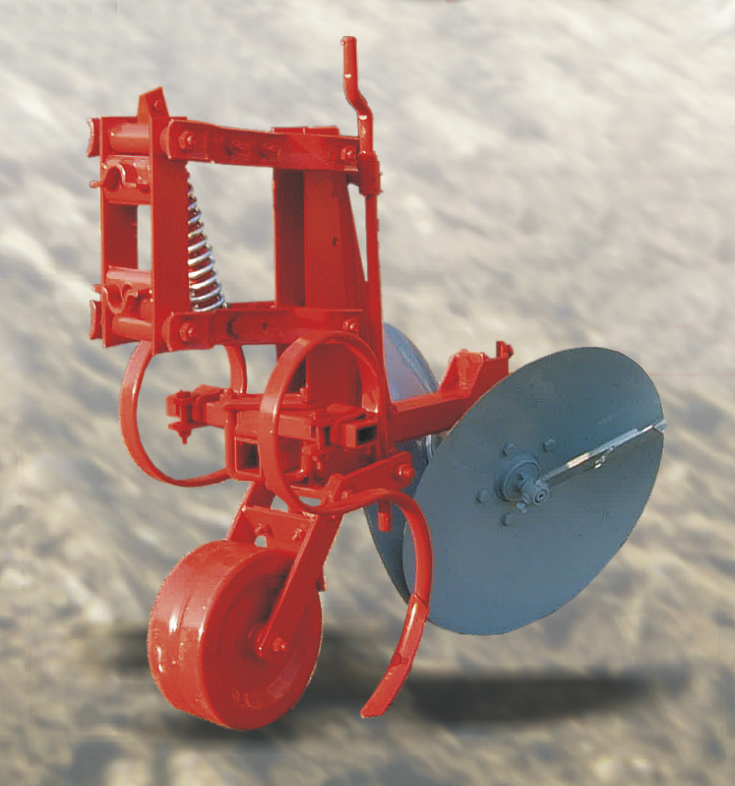

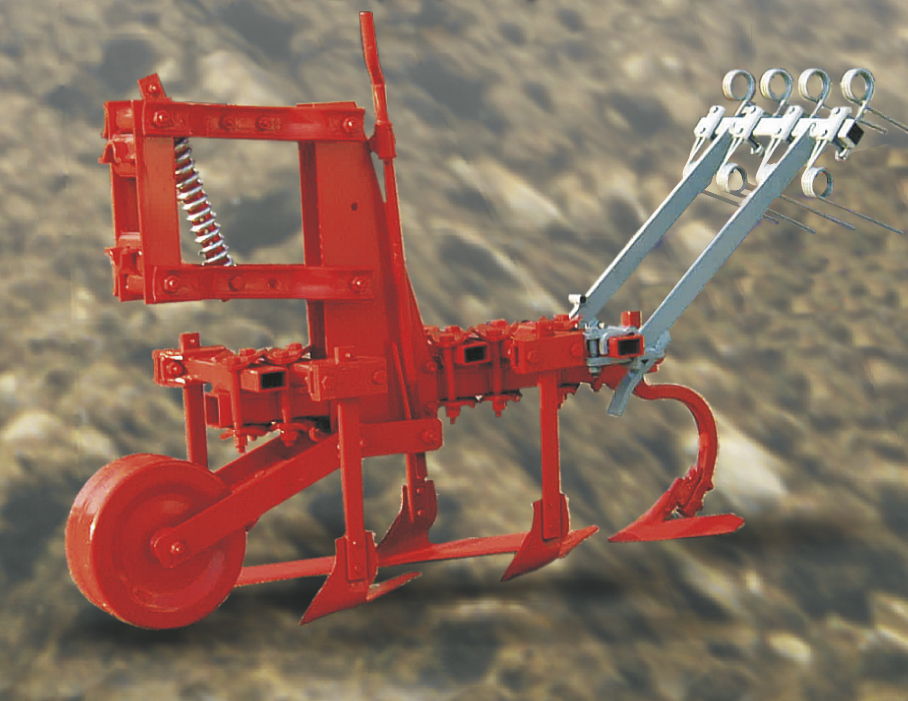

Weeder with independent weeding elements composed by:
- Parallelogram of big oscillation that works on pin with hostaform bushes to follow the difference of ground level;
- Pressed steel blade to avoid torsional movement during the working phase;
- Hook system for digging the single files.
It is assembled for series with vibrating grapplers 12 mm in hardened steel that pull away the grass from roots and also bearing wheels at watertight to regulate the working depth.
It is also available with defend plant, authomatic driving, directional couple wheels, rubber wheels and hydralic closing.
- Parallelogram of big oscillation that works on pin with hostaform bushes to follow the difference of ground level;
- Pressed steel blade to avoid torsional movement during the working phase;
- Hook system for digging the single files.
It is assembled for series with vibrating grapplers 12 mm in hardened steel that pull away the grass from roots and also bearing wheels at watertight to regulate the working depth.
It is also available with defend plant, authomatic driving, directional couple wheels, rubber wheels and hydralic closing.

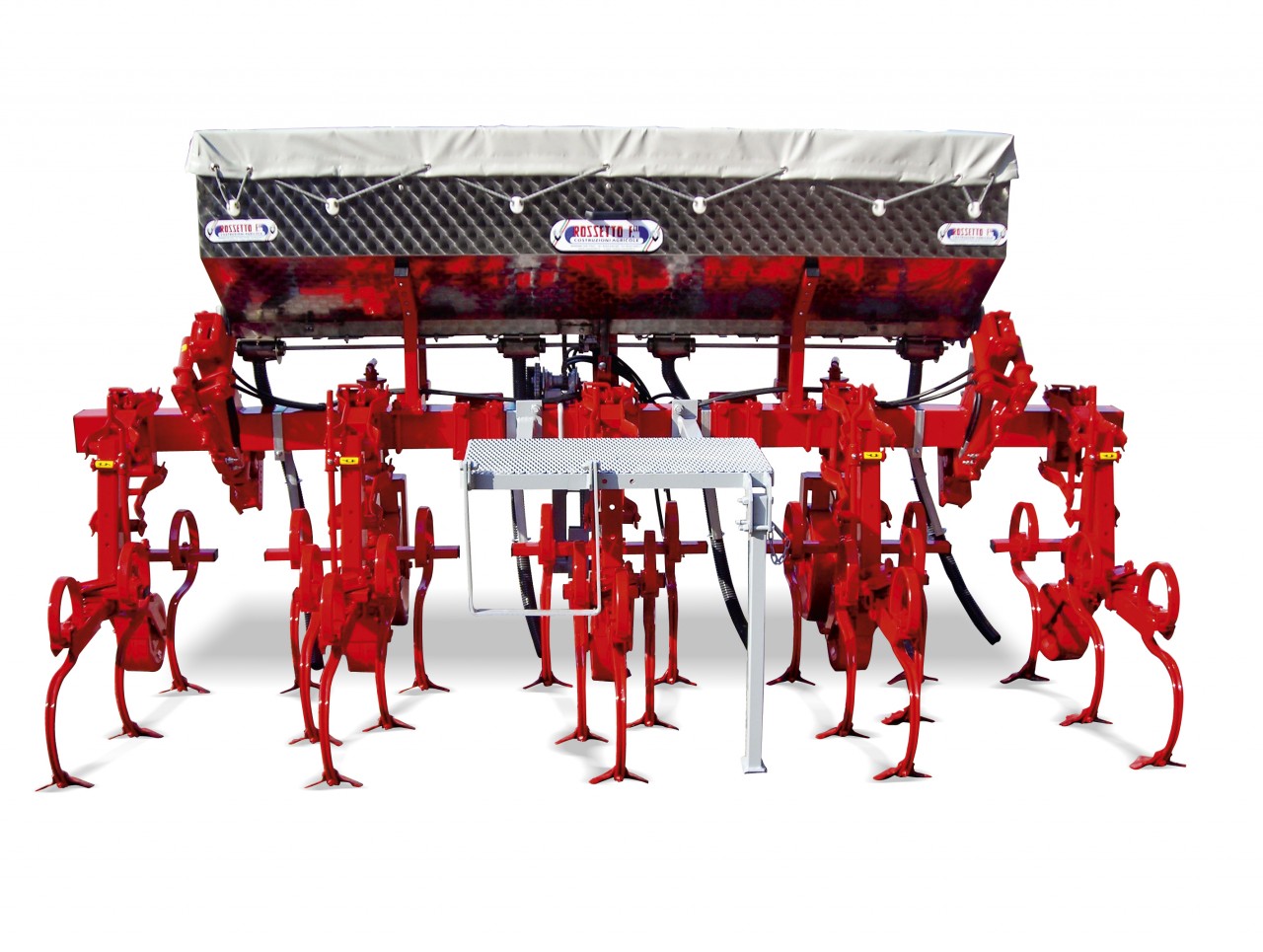

Weeder with vibrating grapplers (SV)
Table
| Type | HP | Working width m | Elements |
| SV/2 | 20/30 | 2,40 | 2 |
| SV/3 | 30/40 | 2,40 | 3 |
| SV/4 | 50/60 | 3,40** | 5 |
| SV/6* | 50/60 | 3,40** | 7 |
| SV/6 | 70/80 | 4,70** | 7 |
| SV/8* | 70/80 | 4,70** | 9 |
* For soya and sugar beets
* * Mechanical or hydraulic folding m 2,50
